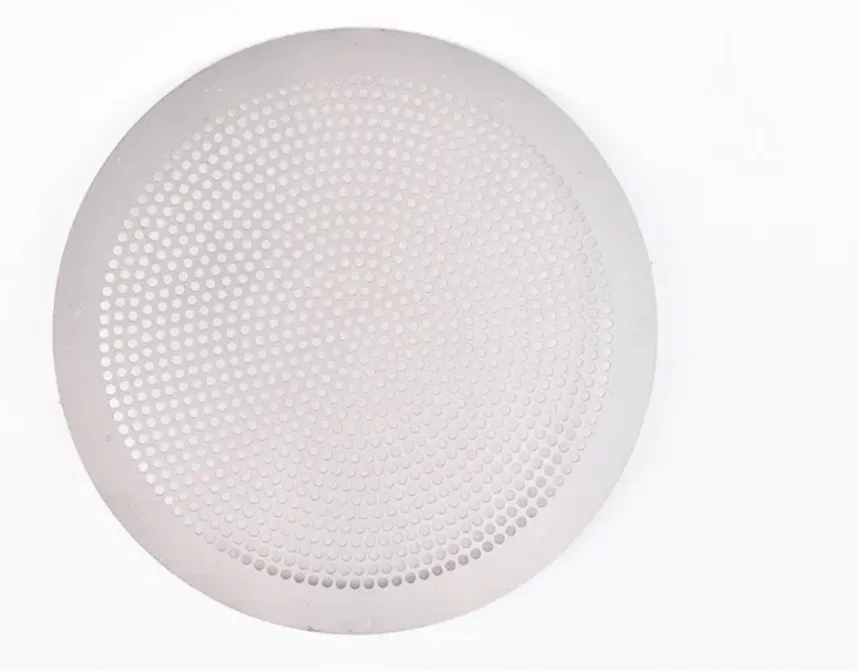

Key Components of a High-Quality Filter Mesh Disc

A high-quality filter mesh disc is a sophisticated assembly of components working together to deliver reliable filtration performance across industries. Wire mesh filter disc, filter mesh disc, and stainless steel mesh disc products are engineered to meet precise standards, ensuring efficiency, durability, and compatibility with diverse media. Our metal filter mesh discs product series meets the needs of various industries with its diverse materials, mesh sizes and filtration accuracy. The filtration products we provide are made of high-quality stainless steel, copper, aluminum and other materials to ensure durability and reliability in different environments. Customers can choose different mesh sizes according to specific needs. The fine filtration accuracy makes it widely used in the filtration, separation and capture of liquids and gases. Hebei Qunhui Metal Products Co., Ltd. excels in crafting these components, leveraging advanced manufacturing to produce filter discs that stand out in terms of performance and longevity.





Material Selection for Stainless Steel Mesh Disc



• Corrosion-Resistant Alloys: Stainless steel mesh disc relies on high-grade stainless steel alloys, such as 304 and 316, to resist rust and chemical degradation. These materials ensure the disc remains intact in moist or corrosive environments, from industrial chemical tanks to food processing lines. Hebei Qunhui Metal Products Co., Ltd. prioritizes these alloys for stainless steel mesh disc, enhancing their suitability for demanding applications.
•
• Strength and Formability: The materials used in stainless steel mesh discmust balance strength with formability, allowing for precise shaping during manufacturing. Hebei Qunhui Metal Products Co., Ltd. selects metals that maintain structural integrity even when formed into fine meshes, ensuring the disc can withstand pressure without tearing or warping.
•

Mesh Structure of Filter Mesh Disc



• Uniform Aperture Sizes: Filter mesh discperformance hinges on consistent aperture sizes, which determine the particle size it can retain. Hebei Qunhui Metal Products Co., Ltd. achieves this uniformity through precision weaving and punching, ensuring each hole meets strict dimensional standards, critical for applications like laboratory analysis or pharmaceutical filtration.
•
• Weave Pattern Efficiency: The weave pattern of a filter mesh disc—whether plain, twill, or Dutch—affects flow rate and particle capture. For example, a Dutch weave offers higher strength and finer filtration, making it ideal for high-pressure systems. Hebei Qunhui Metal Products Co., Ltd. tailors weave patterns to match application needs, optimizing both efficiency and durability.
•

Reinforcement Features in Wire Mesh Filter Disc



• Perimeter Frames: Wire mesh filter discoften includes a rigid perimeter frame, typically made from the same material as the mesh, to prevent distortion under pressure. Hebei Qunhui Metal Products Co., Ltd. welds or crimps these frames securely, ensuring the disc maintains its shape during installation and use, even in high-flow environments.
•
• Support Grids: For fine-mesh wire mesh filter disc, a support grid—usually a coarser mesh layer—prevents sagging or tearing. This grid adds structural stability without compromising filtration, allowing the disc to handle heavier loads or higher pressures. Hebei Qunhui Metal Products Co., Ltd. integrates support grids seamlessly, ensuring they work in harmony with the primary mesh.
•

Finishing and Quality Control



• Deburred Edges: Wire mesh filter disc, filter mesh disc, and stainless steel mesh discrequire smooth, deburred edges to avoid damaging sealing surfaces or causing injury during handling. Hebei Qunhui Metal Products Co., Ltd. uses precision grinding to remove burrs, ensuring safe installation and a tight seal in filtration systems.
•
• Consistent Thickness: Uniform thickness across the disc is vital for even filtration and pressure distribution. Hebei Qunhui Metal Products Co., Ltd. implements strict quality checks to verify thickness, preventing weak spots that could compromise performance or shorten the disc’s lifespan.



Product name	Metal filter Mesh discs
Place of production	China Hebei
Type	Customized product
Texture of wood	Stainless steel, aluminum alloy, copper alloy and carbon steel, etc.
Craft	Weaving, punching, etching and laser cutting processes
Colour	metal color
Size	Customized
Style	Simplicity
Application scenario	Kitchen, agriculture, laboratory, chemical industry, etc.



Filter Mesh Disc Key Components FAQS



What materials make Stainless steel mesh disc durable?



Stainless steel mesh disc from Hebei Qunhui Metal Products Co., Ltd. uses high-grade stainless steel (304, 316) for durability. These alloys resist corrosion, heat, and wear, ensuring the disc performs reliably in diverse environments, from kitchens to chemical plants.



How does Filter mesh disc achieve precise filtration?



Filter mesh disc achieves precision through uniform aperture sizes and optimized weave patterns. Hebei Qunhui Metal Products Co., Ltd. uses advanced manufacturing to ensure consistent hole dimensions, allowing the disc to capture particles of specific sizes with high accuracy.



Why are reinforcement frames important for Wire mesh filter disc?



Reinforcement frames in wire mesh filter disc prevent distortion under pressure, maintaining the disc’s shape and filtration efficiency. Hebei Qunhui Metal Products Co., Ltd. designs these frames to match the mesh material, ensuring compatibility and long-term performance in high-stress applications.



Can Filter mesh disc be customized for unique applications?



Yes, filter mesh disc from Hebei Qunhui Metal Products Co., Ltd. is fully customizable. Customers can select materials, mesh sizes, weave patterns, and frame designs to meet unique needs, from industrial filtration to specialized laboratory use.



How does Hebei Qunhui ensure quality in Stainless steel mesh disc?



Hebei Qunhui Metal Products Co., Ltd. ensures quality in stainless steel mesh disc through strict material testing, precision manufacturing, and post-production inspections. Each disc undergoes checks for aperture uniformity, frame integrity, and surface smoothness, guaranteeing consistent performance.
